Convenient temporary electricity for public construction projects - Engineering power supply EP-3000/EP-6000
The power of the pickup truck originates from the construction line of the project site, aiming at the problem of the construction of electricity, it is proposed to replace the power supply of the distribution box with the mobile engineering power to solve the pain points of low efficiency, high risk and high cost of construction power.
Pika Power launched a temporary power system with a combination of power supplies for the traditional gasoline/diesel generator power supply in public construction projects.
Using the EP-6000 project power supply, EP-3000 project power supply, auxiliary high-frequency double-sound ACDC bidirectional vehicle power supply system, can fully cover from 220/380 volts, 500-20 kilowatts of all kinds of construction machinery, ensure the construction of efficient electricity, completely replace gasoline/diesel generator power supply, The cost of integrated electricity is less than 10% of the cost of generator power supply, and it is safer, more efficient and more convenient.
Pika Power launched a temporary power system with a combination of power supplies for the traditional gasoline/diesel generator power supply in public construction projects.
Using the EP-6000 project power supply, EP-3000 project power supply, auxiliary high-frequency double-sound ACDC bidirectional vehicle power supply system, can fully cover from 220/380 volts, 500-20 kilowatts of all kinds of construction machinery, ensure the construction of efficient electricity, completely replace gasoline/diesel generator power supply, The cost of integrated electricity is less than 10% of the cost of generator power supply, and it is safer, more efficient and more convenient.
|
|
|

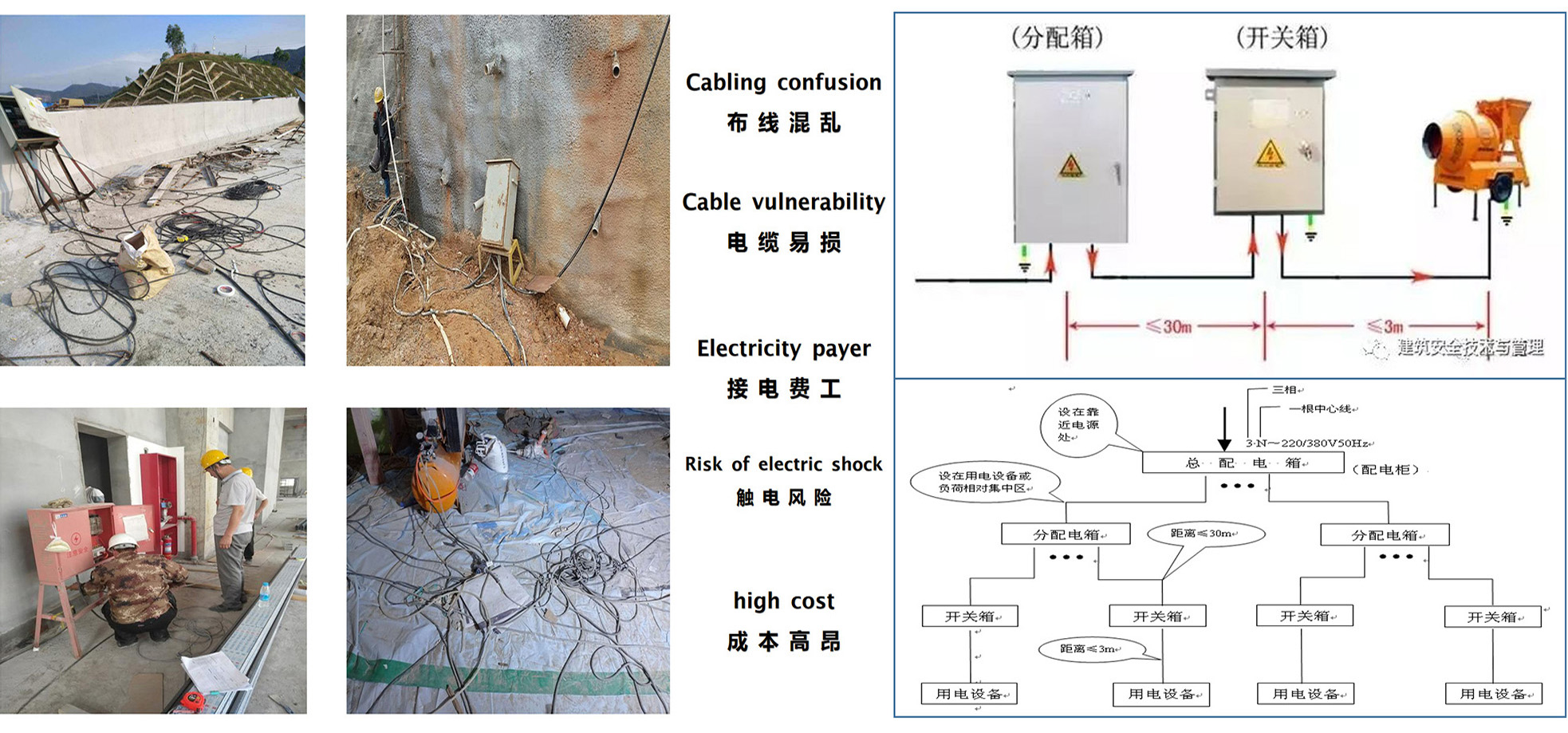

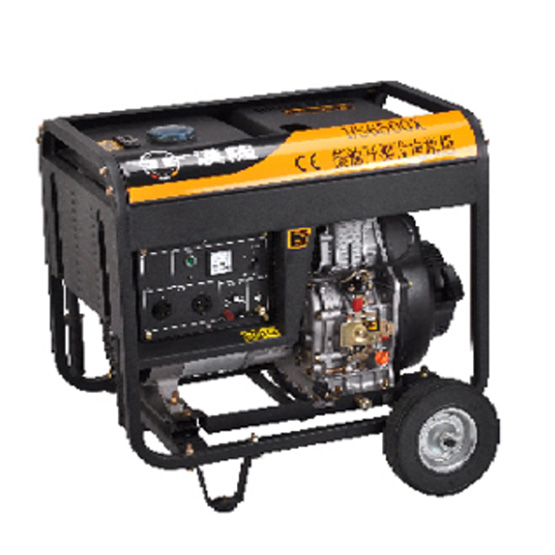

| Construction of temporary electricity - three distribution box power connection | Chemical energy conversion - gasoline diesel power generation and distribution | Convenient energy storage distribution |
| Battery | Storage Capacity(Wh) | 3000Wh |
| DC charging voltage （V） | 30.1V | |
| DC Charging current(A) | 25A | |
| Max. Discharge current(A) | 180A | |
| Work Temperature | -20°C 50°C | |
| Charging temperature | -20°C 50°C | |
| Car Body | Rated output(W) | 3000W |
| Size（W*D*H）mm | 410*240*300 | |
| Weight（kg） | 30kg | |
| Output Voltage Ac(V) | 220VAC/110VAC | |
| Output Frequency(HZ) | 50/60H2+0.196 | |
| Peak power（W） |
|
| Engineering power supply EP-3000 |
| Battery | Storage Capacity(Wh) | 6000Wh |
| DC charging voltage （V） | 54.6V | |
| DC Charging current(A) | 30A | |
| Max. Discharge current(A) | 230A | |
| Work Temperature | -20°C 50°C | |
| Charging temperature | -20°C 50°C | |
| Car Body | Rated output(W) | 5000W |
| Size（W*D*H）mm | 495*360*300 | |
| Weight（kg） | 54kg | |
| Output Voltage Ac(V) | 208/220/240VAC±5% | |
| Output Frequency(HZ) | 50/60H2+0.196 | |
| Peak power（W） | 10000VAC |
|
| Engineering power supply EP-6000 |
|

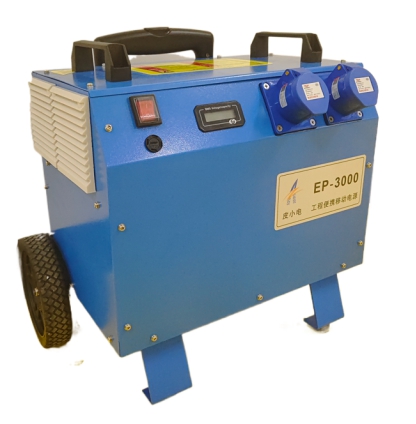

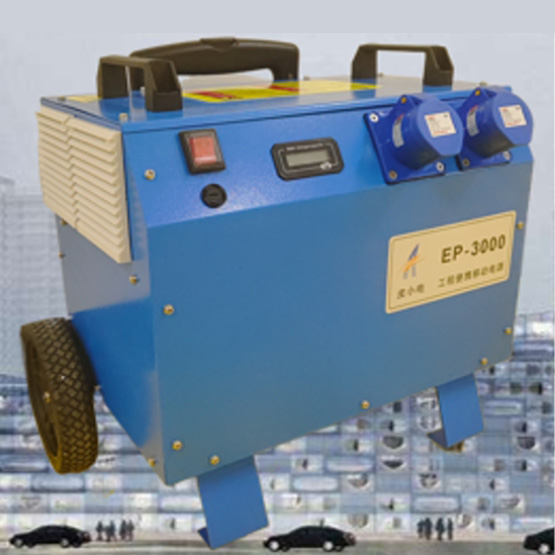

Advantages of Engineering power supply EP-3000:
1. Safety: the output voltage is 24V, the output voltage is 220V, but the leakage protection switch is configured to completely eliminate the hidden danger of electric shock; 2. Convenience: luggage box-type design, weight is less than 26KG, simple-to-use operation, greatly reducing skill requirements; 3. Economic type: crack the invalid time of the operator to connect the power, improve the work efficiency. Compared with gasoline generators, the operating cost is less than 10%; 4. Durability: The use of Ning Wang A product cell, more than 2000 cycles, more than 5 years of life; 5. Applicability: all construction machinery within 4000W. |
|

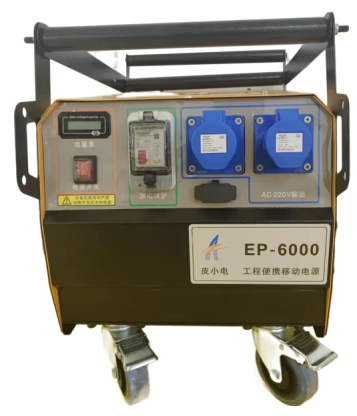

Advantages of Engineering power supply EP-6000:
1. Safety: the output voltage is 24V, the output voltage is 220V, but the leakage protection switch is configured to completely eliminate the hidden danger of electric shock; 2. Convenience: separate fuselage design, split handling, simple-to-use operation, greatly reducing skill requirements; 3. Economic type: crack the invalid time of the operator to connect the power, improve the work efficiency. Compared with gasoline generators, the operating cost is less than 10%; 4. Durability: The use of Ning Wang A product cell, more than 2000 cycles, more than 5 years of life; 5. Applicability: all construction machinery within 7000W. |
Convenient temporary electricity for house construction project - temporary electricity system for Pi small electricity project

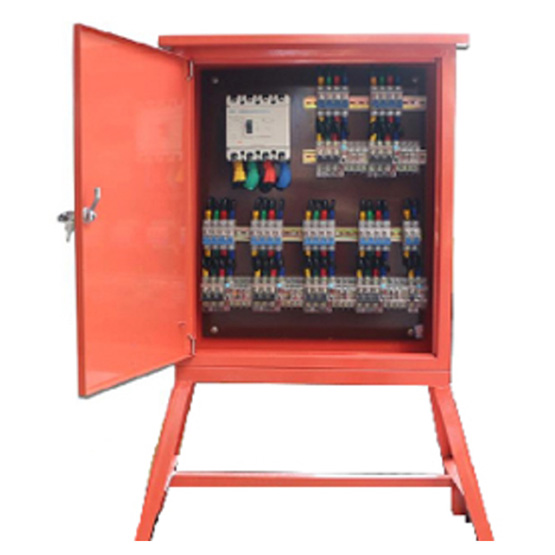

The construction electricity of the house construction project is connected to the mains power supply by the distribution box, which has the inevitable pain points such as low frequency of use of the distribution box, messy, sporadic, high-risk and so on.

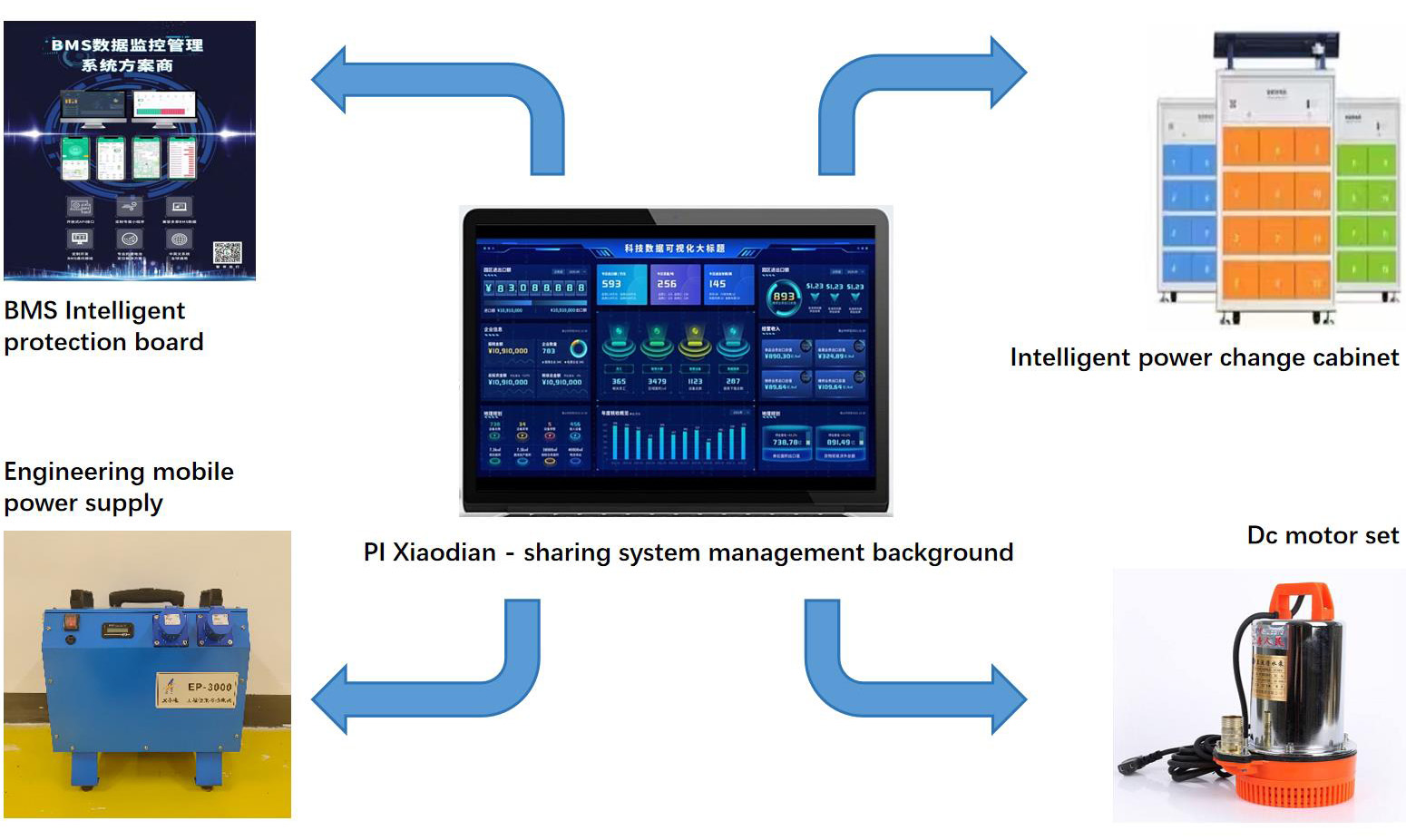

In view of the power problems of housing construction projects, Pickup Power launched a semi-solid power supply, engineering inverter, intelligent power change cabinet, management platform combined leather small power-sharing temporary power system, instead of the distribution box connected to the mains power supply.
Picoelectric - engineering temporary power system can realize the interconnection of engineering power supply and construction equipment, and the sharing and sharing of operators. It can not only meet the electricity consumption of construction machinery, but also improve the work efficiency of operators, and realize the self-management of equipment rental through the management platform, reducing the cost of project electricity.
Projects operated strictly according to the small power - engineering temporary power system can reduce the cost of temporary power engineering by more than 90%.
Picoelectric - engineering temporary power system can realize the interconnection of engineering power supply and construction equipment, and the sharing and sharing of operators. It can not only meet the electricity consumption of construction machinery, but also improve the work efficiency of operators, and realize the self-management of equipment rental through the management platform, reducing the cost of project electricity.
Projects operated strictly according to the small power - engineering temporary power system can reduce the cost of temporary power engineering by more than 90%.

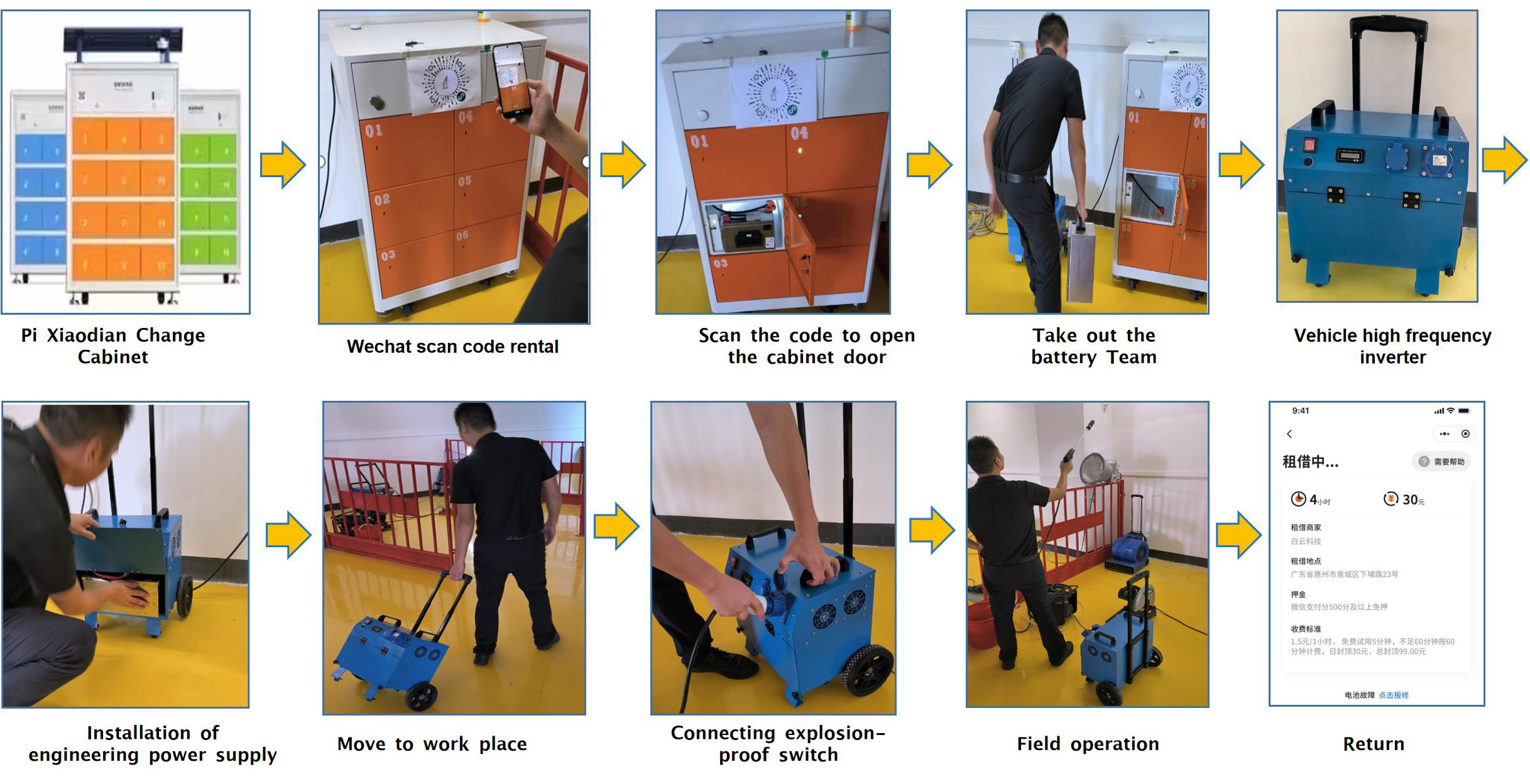

From the actual point of view, the system continues to simplify the rental, use and return process, and the fool operation greatly reduces the technical difficulty of electricity, so that everyone can simply use electricity.

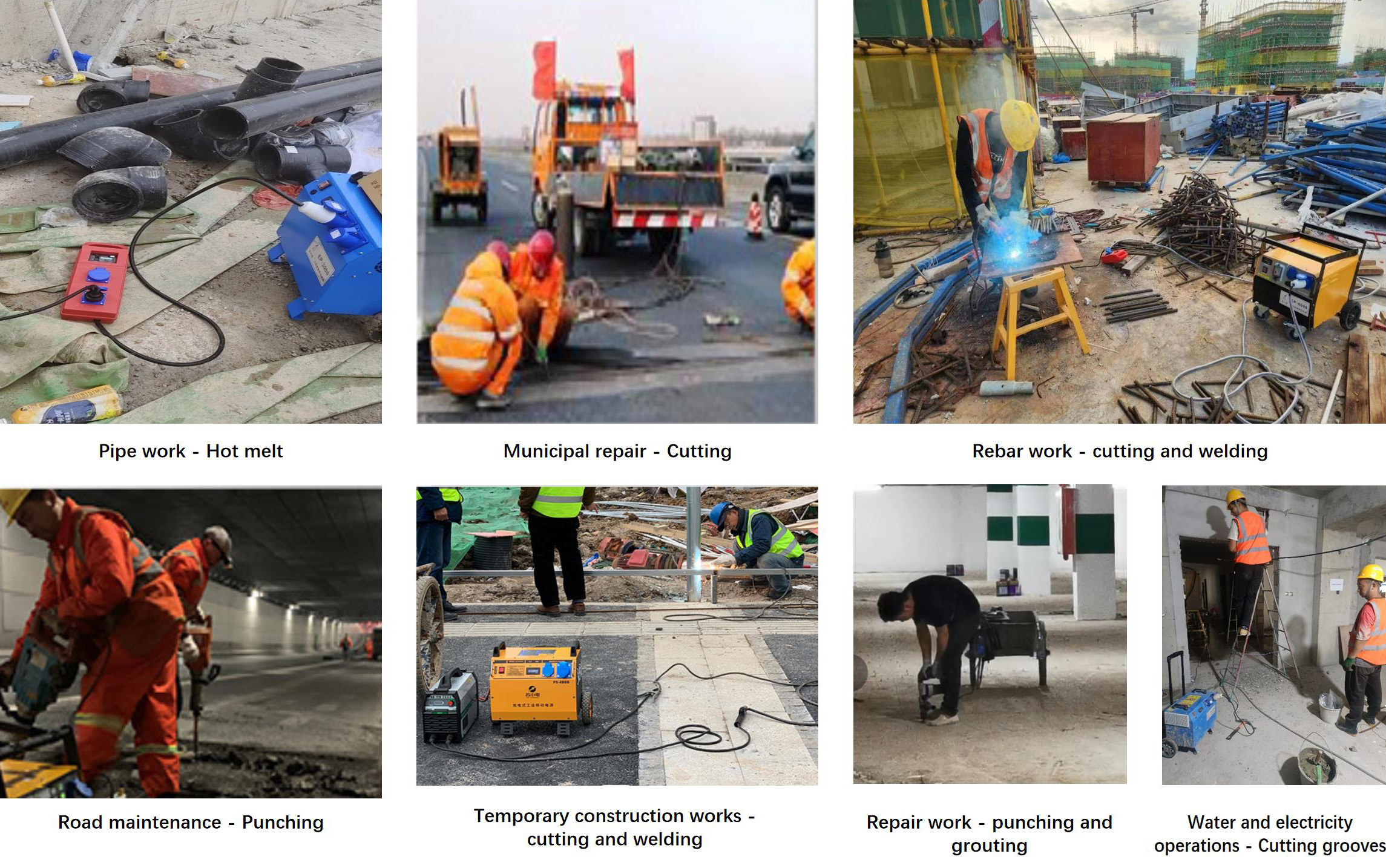

Project Analysis

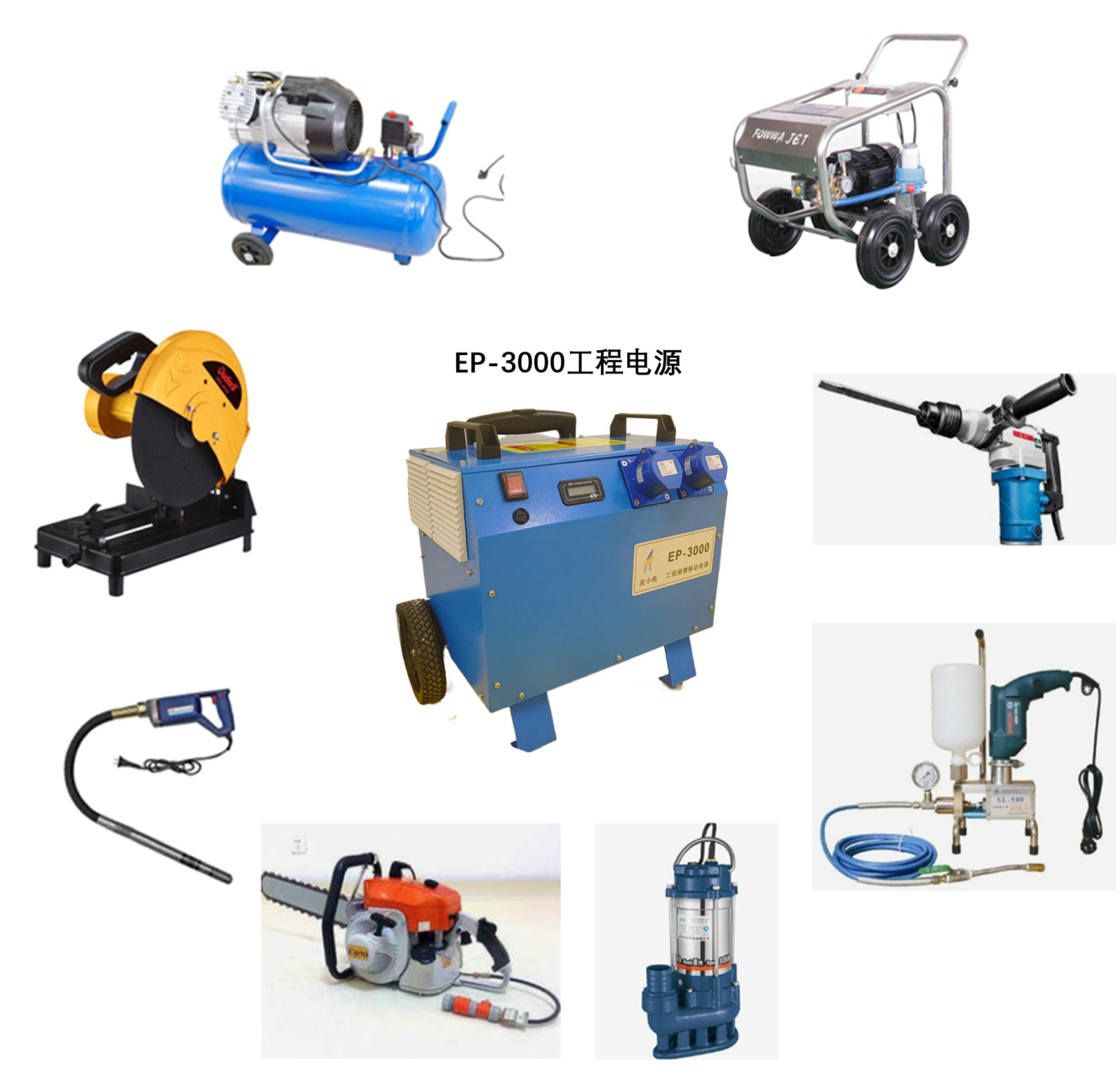

EP-3000 engineering power supply,
It can meet 2-3 electric hammers, a grouting machine at the same time operation, continuous operation for more than 7 hours;

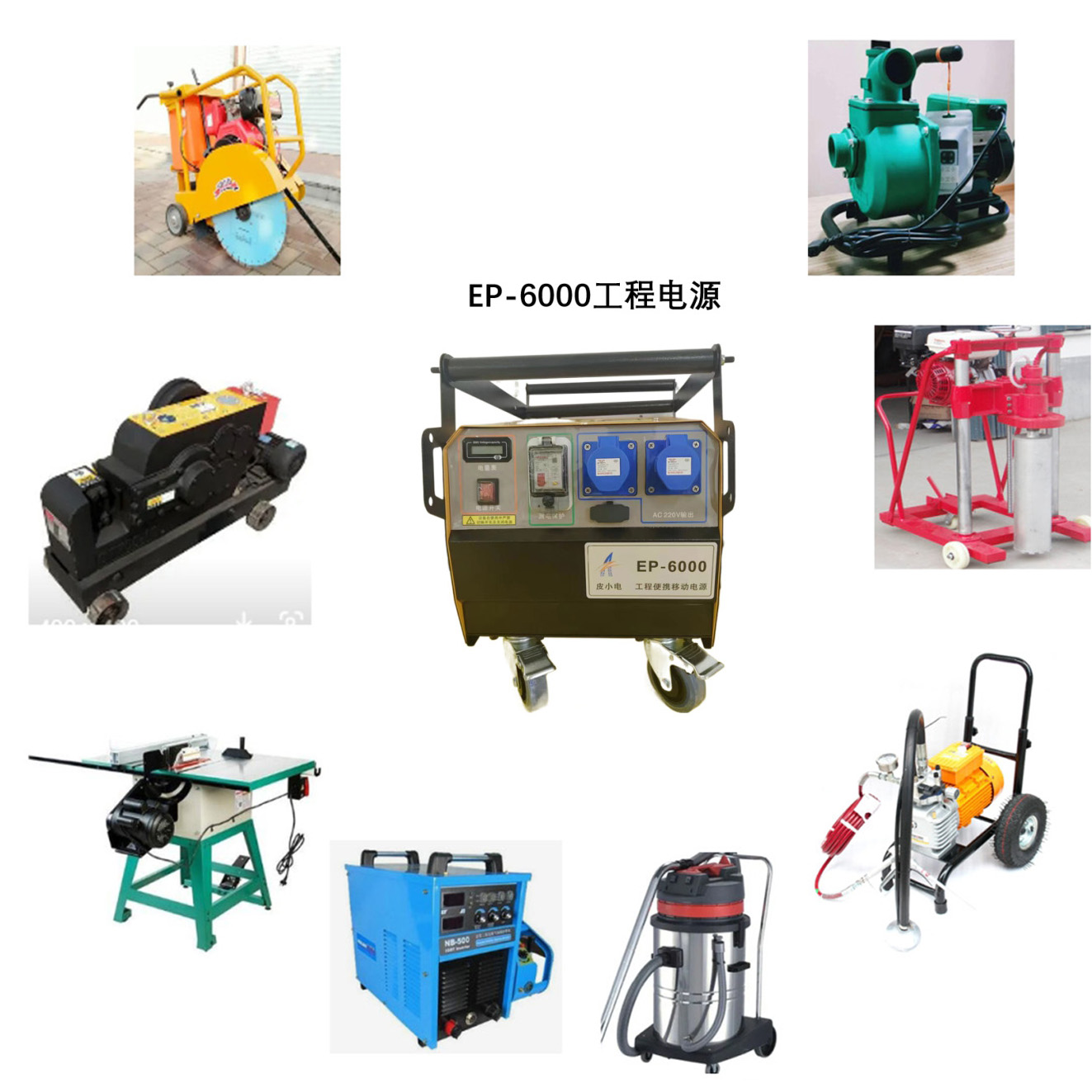

EP-6000 Engineering power supply, It can satisfy 5 electric hammers and 2 grouting machines working at the same time, lasting more than 8 hours.
Use engineering power Increase efficiency by 30%.
EP-6000 Engineering power supply, It can satisfy 5 electric hammers and 2 grouting machines working at the same time, lasting more than 8 hours.
Use engineering power Increase efficiency by 30%.
